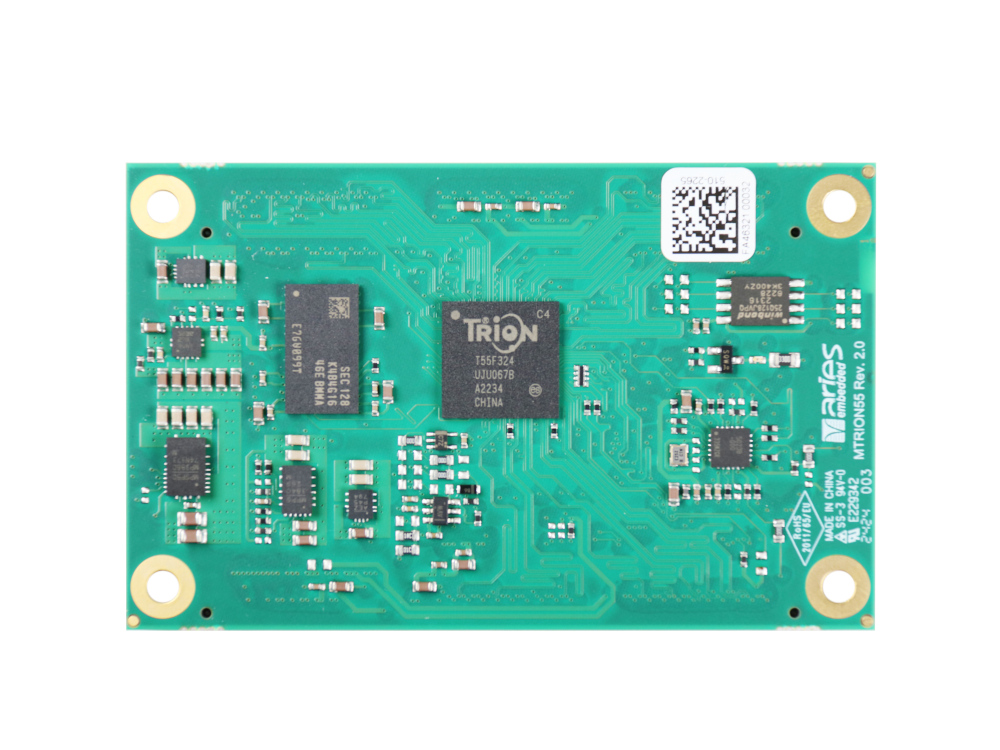

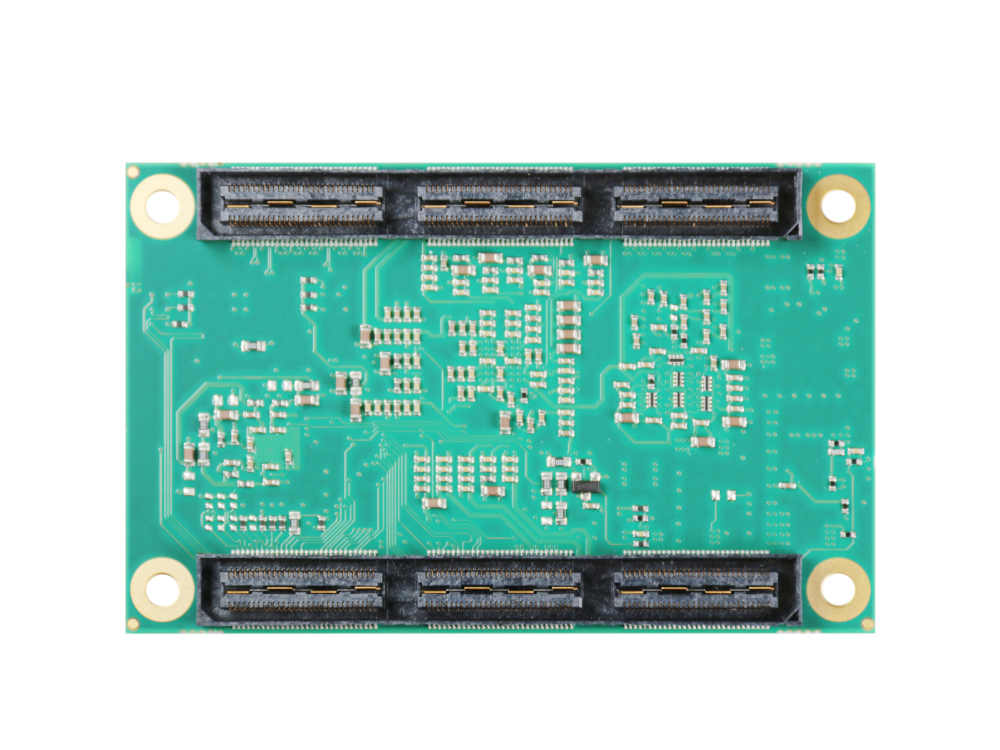

MTrion - SoM based on Efinix® Trion® FPGA

Versatile FPGA for low power Industrial Applications

MTrion System on Modules support the Trion® FPGA family and are the ideal solution to get FPGA projects quickly to market.  The Mtrion SoMs support on-board DDR3 RAM, expose the MIPI-CSI and LVDS signals to the baseboard, they are the ideal fit for digital-logic as well as RISC-V based softcore implementations.

Trion products are designed into a broad range of applications in many diverse markets. The Trion family of FPGAs is supported in customer designs until at least 2033, so are the MTrion SoMs.

Based on the feature set MTrion supports various target markets such as e.g. Industrial Automation, video processing and the Internet-of-Things.

  • Trion FPGA in 324 ball FBGA package
    • T20
      1.044 bit Embedded RAM
      36x 18x18 Multipliers
      7 PLLs
    • T35
      1.475 bit Embedded RAM
      120x 18x18 Multipliers
      7 PLLs
    • T55 (Standard for MTrion)
      2.765 bit Embedded RAM
      150x 18x18 Multipliers
      8 PLLs
    • T85
      4.055 bit Embedded RAM
      240x 18x18 Multipliers
      8 PLLs
    • T120
      5.407 bit Embedded RAM
      320x 18x18 Multipliers
      8 PLLs
  • 128 MBit SPI NOR
  • 512MByte DDR3 SDRAM
  • programmable clock generator and PLL, with optional external reference input
  • 161 FPGA GPIO pins
    • including 29 LVDS transmitters and receivers
    • MIPI0 interface, 4 lanes
    • MIPI1 interface, 4 lanes
  • Size: 77mm x 48mm
  • temperature range 0°C...+70°C
  • optional temperature range -40°C...+85°C

MTrion55

  • Trion FPGA in 324 ball FBGA package
    • T55 (Standard for MTrion)
      2.765 bit Embedded RAM
      150x 18x18 Multipliers
      8 PLLs
  • 128 MBit SPI NOR
  • 512MByte DDR3 SDRAM
  • programmable clock generator

Trion FPGAs are built on Efinix's first-generation Quantum® fabric. This innovative fabric is made up a sea of tiles that can function as logic and routing. So software can decide where to put logic and where to put routing, making Trion FPGAs extremely efficient. In addition to logic and routing, the fabric includes embedded memory blocks and multiplier blocks (or DSP blocks).
