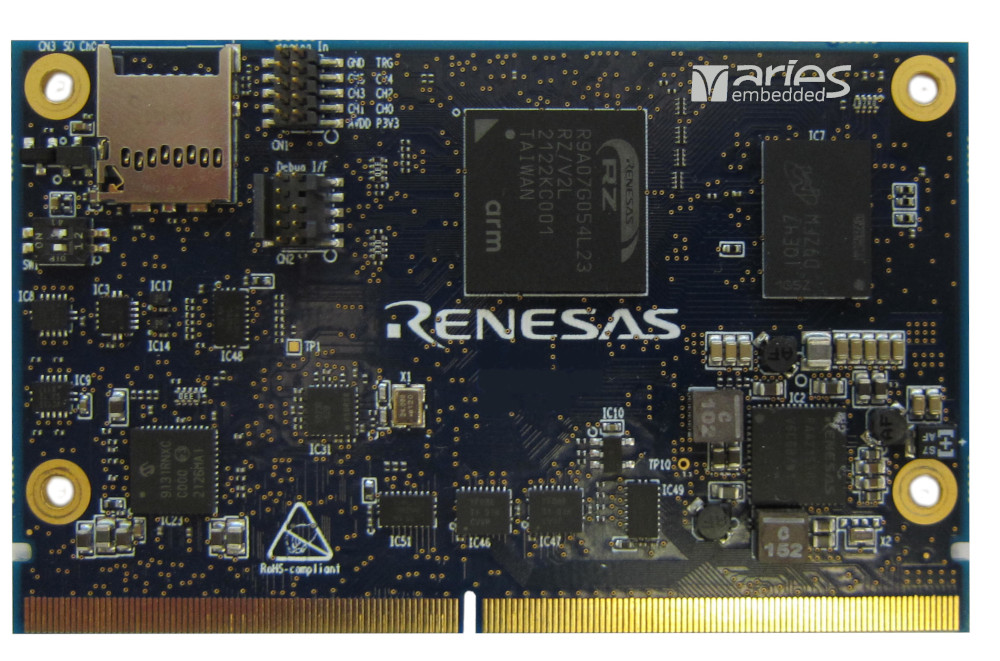

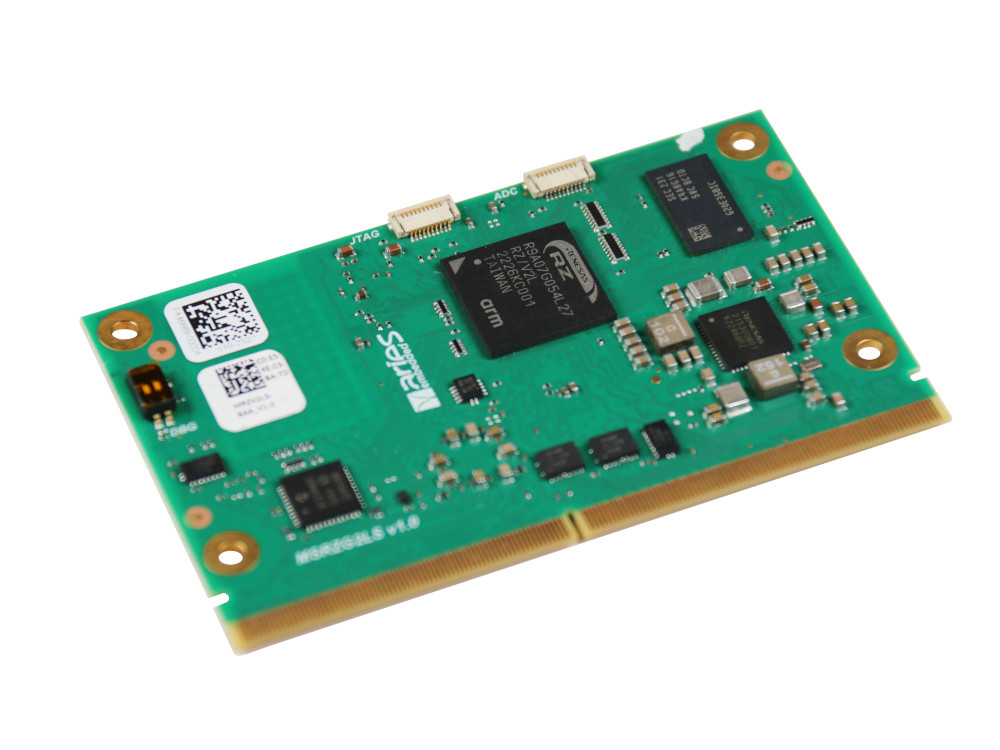

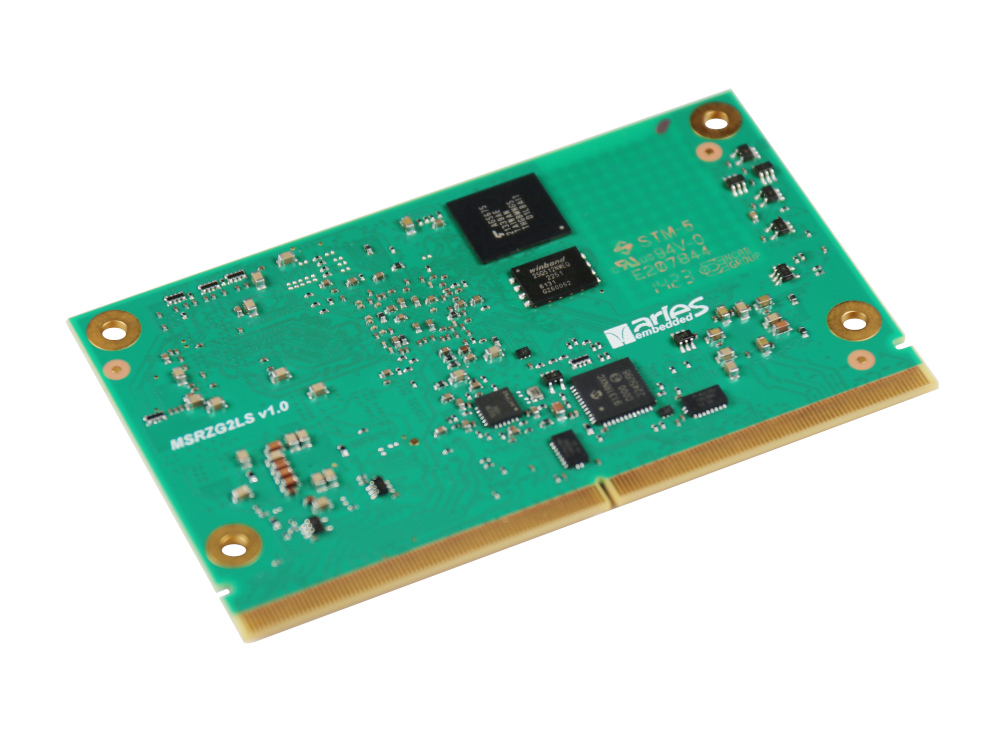

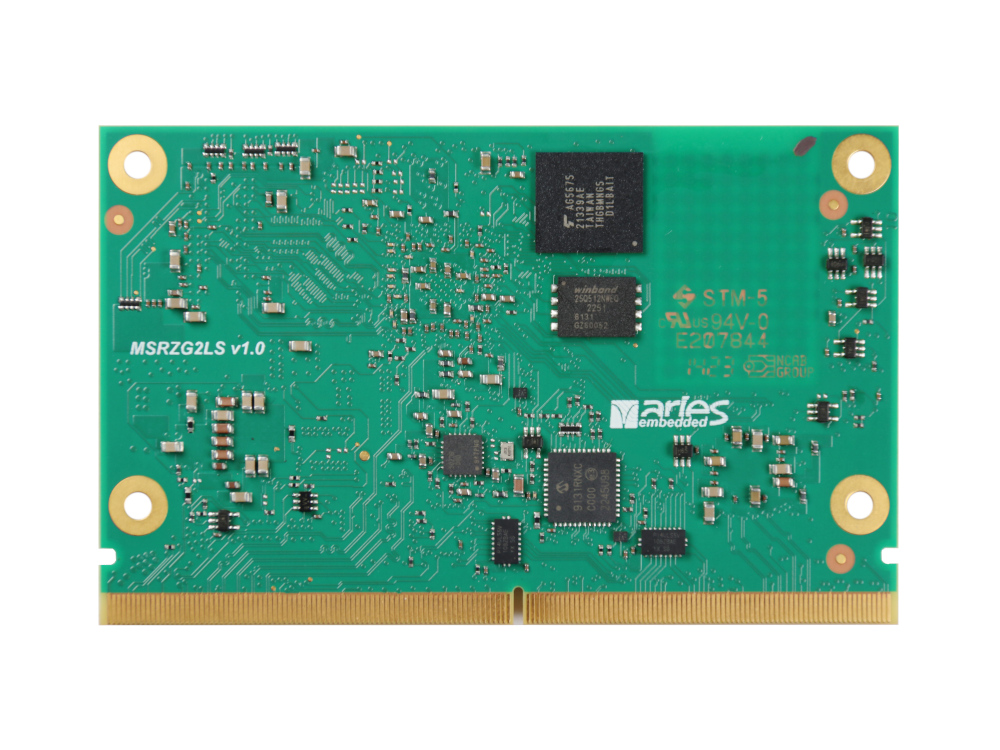

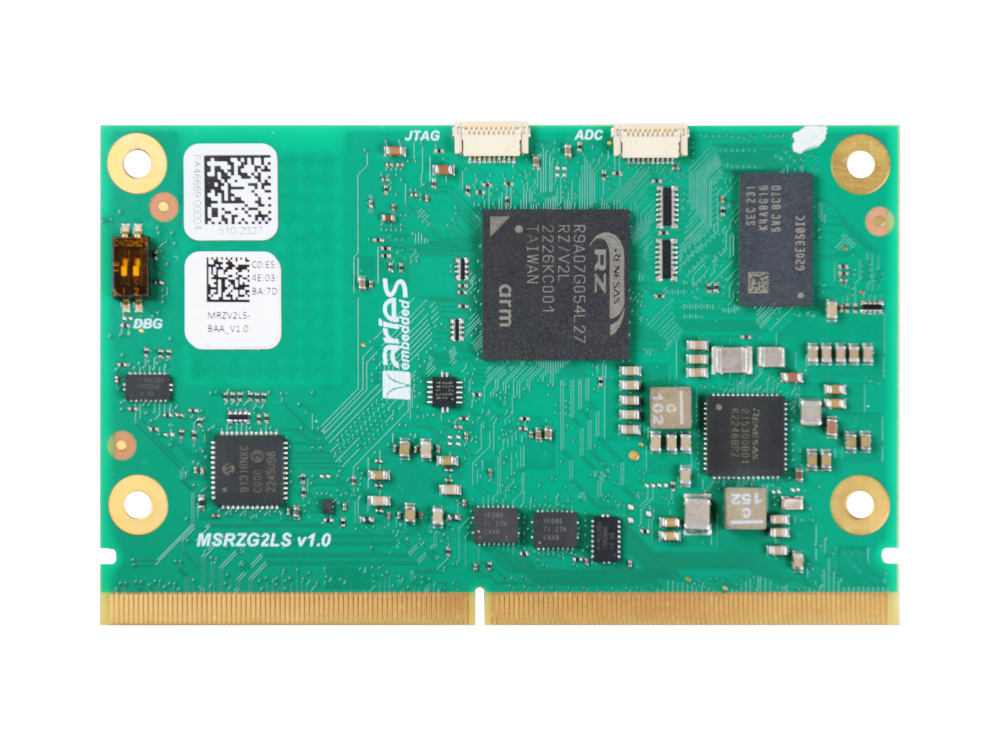

MRZG2LS - Single/Dual CortexA55 / CortexM33

RZ/G2L SMARC 2.1 compliant System-on-Module

MRZG2LS SoMs are starting at EUR 54,00 net.

The MRZG2LS and MRZV2LS are the SMARC V2.1 compliant System-on-Modules based on Renesas RZ Family architecture offering high-performance for embedded systems.
The RZ/G2L microprocessor includes a Cortex®-A55 (1.2 GHz) CPU, 16-bit DDR3L / DDR4 interface, 3D graphics engine with Arm Mali-G31 and video codec (H.264). It also has many interfaces such as camera input, display output, USB 2.0, and Gigabit-Ethernet, making it ideal for applications such as entry-class
industrial human-machine interfaces (HMIs) and embedded devices with video capabilities.

  • Single or Dual Cortex-A55, up to 1.2GHz
  • Single Cortex-M33, up to 200 MHz
  • optional AI accelerator; DRP-AI on MRZV2L
  • 3D Graphics engine (Arm Mali-G31)
  • Video Codec (H.264)
  • 512MB – 4GB DDR4 RAM
  • SPI NOR
  • 4GB-64GB eMMC NAND Flash
  • dual 10/100/1000MBit Ethernet with PHY
  • USB2.0 Host/OTG
  • 2x CAN
  • UART, I2C, SPI
  • ADC
  • Camera interface MIPI-CSI
  • Display interface MIPI-DSI
  • compliant to the SGET SMARC 2.1 standard
  • commercial (0°C...+70°C) / industrial (-40°C...+85°C) temperature range

MRZG2LS-BAA

  • Renesas RZ/G2L R9A07G044L23GBG#BC0
  • 1GB DDR4 RAM
  • 4GB eMMC
  • 128MBit SPI-NOR
  • 2x KSZ9131 PHY
  • -25°...+85°C
