MSRZG3SEVK - Evaluation Kit for SiP

Versatile and Edgy Evaluation Kit for System-in-Package

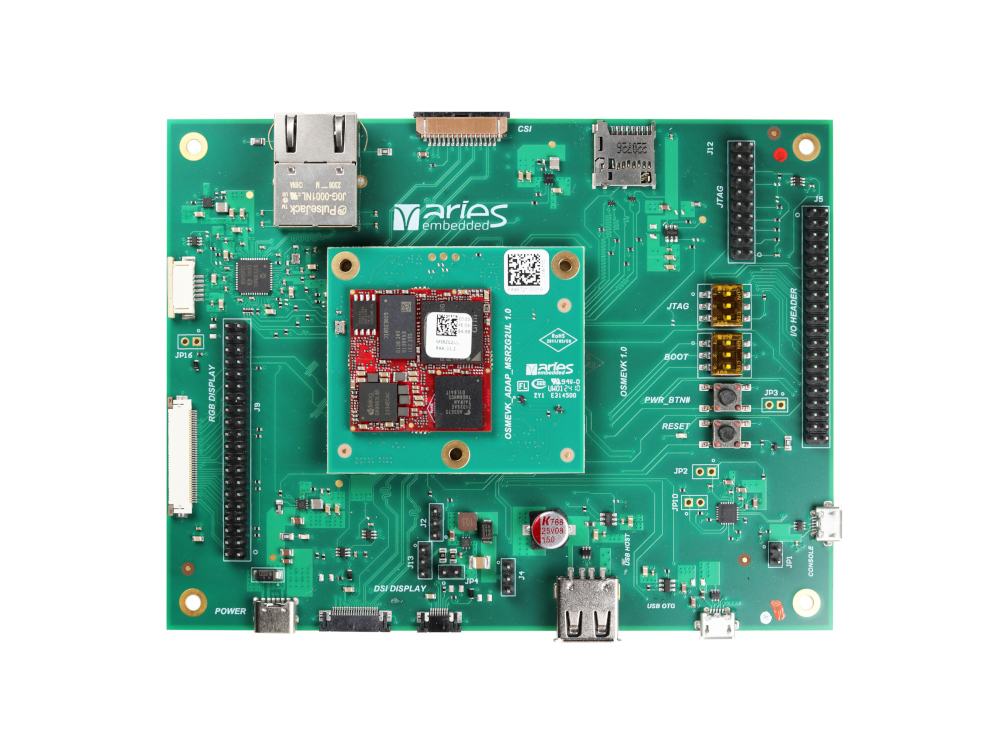

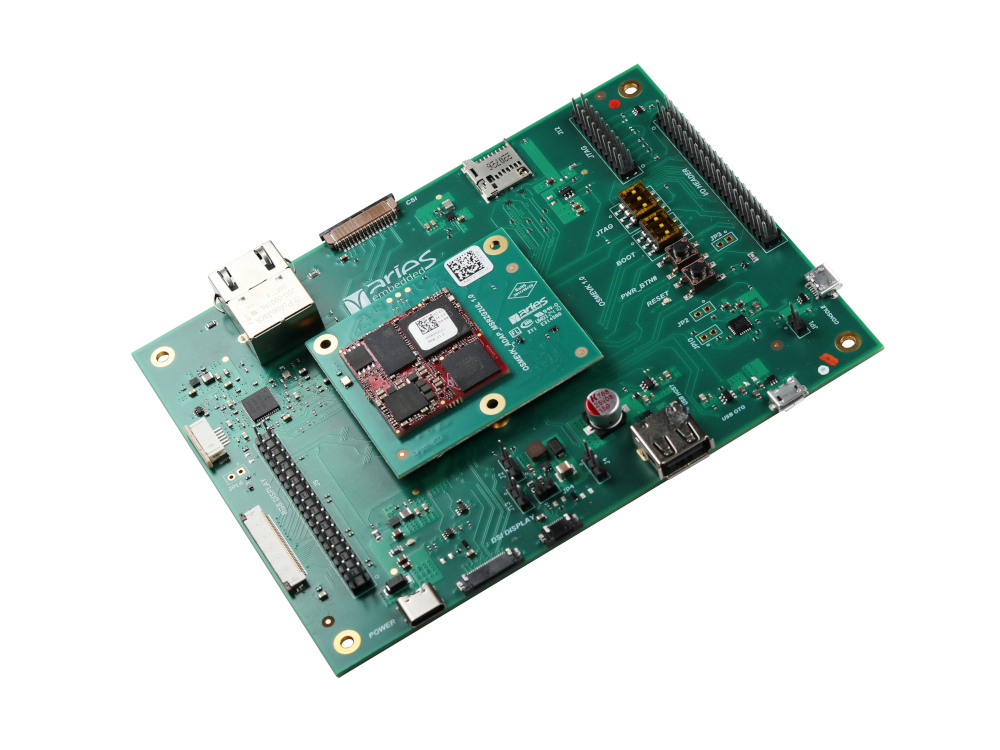

The MSRZG3SEVK is the flexible platform for a quick and smooth startup with your new MSRZG3S System on Module. Due to its functionality it supports developers for a quick startup, helps developing software and can also be used as a platform for rapid prototyping.

The baseboard supports SoMs which are compatible to the OSM specification as well as SoMs compliant to proprietary implementations. The evaluation system consists out of the

  • SoM, hosting all memory and logic interfaces
  • the adapter board, converting interfaces and/or voltage levels to the right value / direction so that the SoM functionality can be used on the baseboard
  • the baseboard which hosts all components to provide the physical interface implementation and connectors
  • MSRZG3S System on Module
  • Ethernet on RJ45 connector
  • display on FPC connector or pin header
  • USB Host on USB A connector
  • USB OTG interface on USB microAB connector
  • console interface on USB microAB connector
  • UART on pin header
  • CAN on pin header
  • SPI on pin header
  • I2C on pin header
  • GPIO on pin header
  • JTAG on pin header
  • MSRZG3SEVK-A0A
    featuring
    • MSRZG3S-A0A SoM
      • Renesas RZ/G3S
      • 512MB LPDDR4 RAM
      • no eMMC NAND Flash
      • 128MBit SPI-NOR
      • -25°...+85°C



  • MSRZG3SEVK-BAA
    featuring
    • MSRZG3S-BAA SoM
      • Renesas RZ/G3S
      • 1GB LPDDR4 RAM
      • 4GB eMMC
      • 128MBit SPI-NOR
      • -25°...+85°C



Versatile and Edgy Evaluation Kit for System-in-Package
