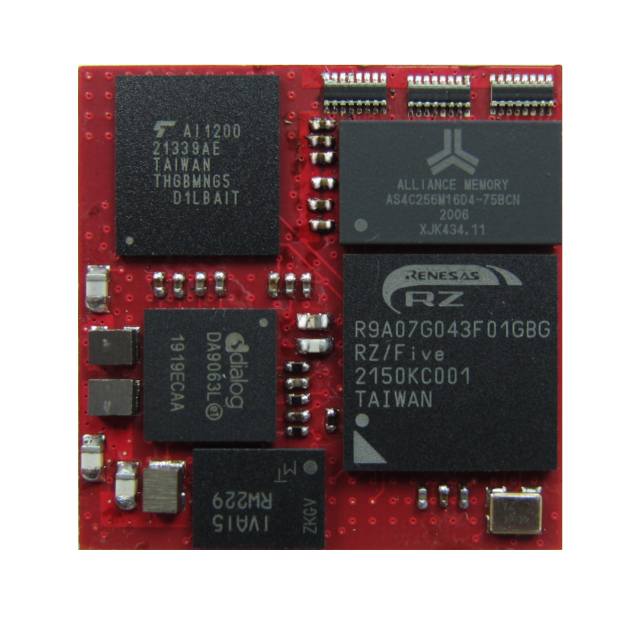

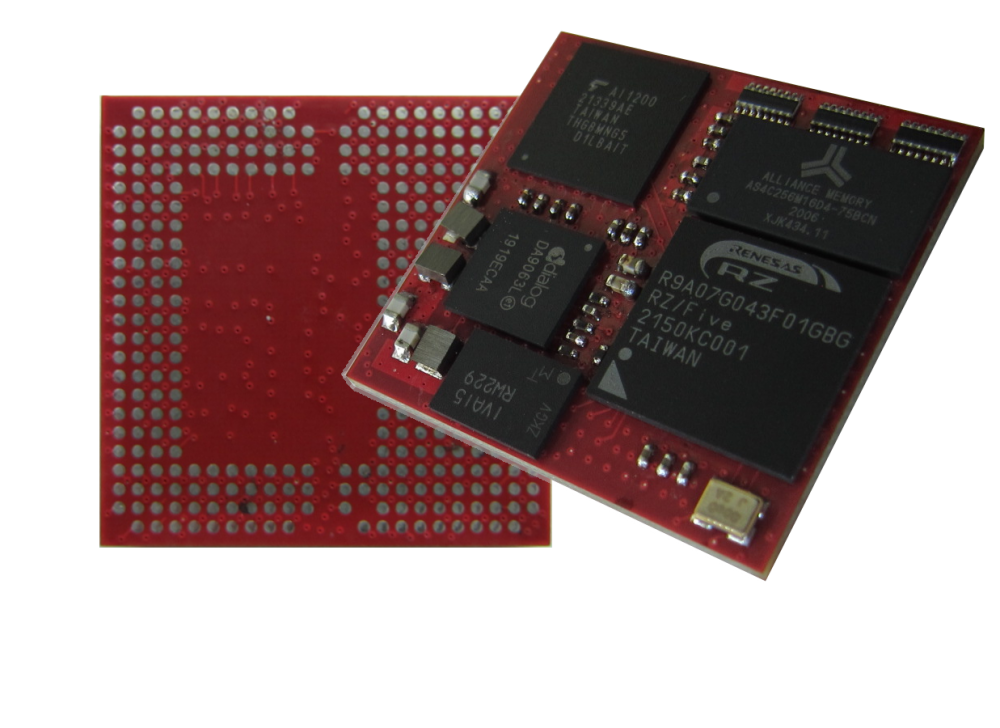

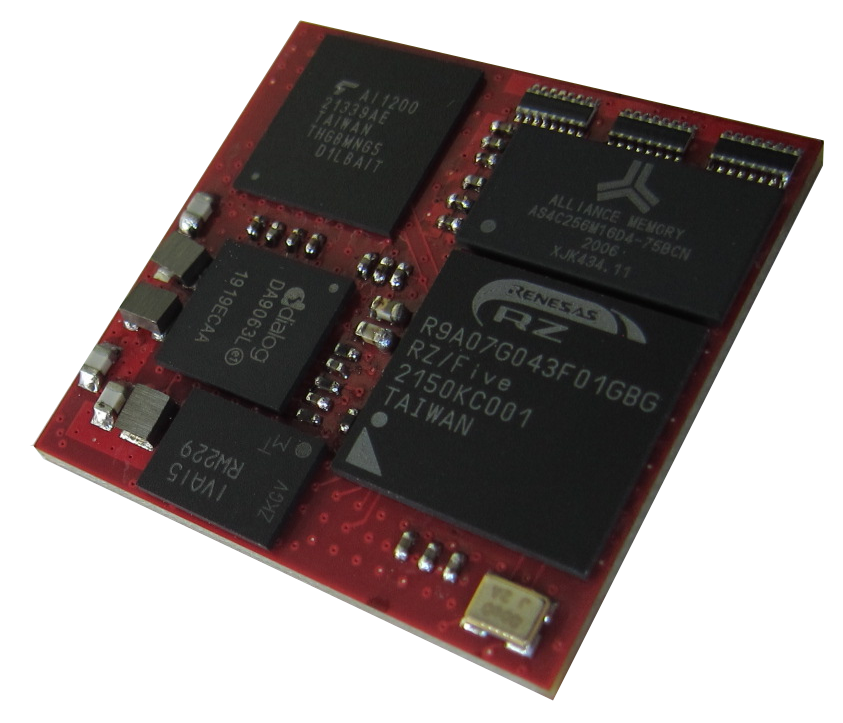

MSRZFive - RISC-V Single Core SiP

RZ/Five - RISC-V for Industrial Applications

The MSRZFive is the System-In-Package based on Renesas RZ Family architecture offering high-performance 64-bit RISC-V core. The MSRZFive combines compact design and a wide range of services, bringing low power consumption, thermal efficiency and low-cost to embedded systems. The MSRZFive was designed to meet the specifications of the OSM-standard as much as possible.

The RZ/Five general-purpose microprocessor units (MPUs) are built around a 64-bit RISC-V CPU core and employ the Andes AX45MP, based on the RISC-V CPU instruction set architecture (ISA). Peripheral functions include support for multiple interfaces, such as two Gigabit Ethernet channels, two USB 2.0 channels, and two CAN channels, as well as dual A/D converter modules, making it ideal for applications such as entry-class social infrastructure gateway control and industrial gateway control.

In addition to a wide range of services, the MSRZFive modules also offer new functionalities in terms of flexibility and processing. The Systems-in-Packages can be individually adapted to the respective customer requirements due to four different form factors.



  • Single core RISC-V, up to 1GHz
  • 512MB – 4GB DDR4 RAM
  • 4GB eMMC NAND Flash
  • dual 10/100/1000MBit Ethernet
  • USB2.0 Host/OTG
  • 2x CAN
  • UART, I2C, SPI
  • ADC
  • 30x30mm²,
  • pin count: 332
  • 0°C..+70°C commercial temperature range
  • -40°C..+85°C industrial temperature range

MSRZFive-A0A

  • Renesas RZFive R9A07G043F01GBG
  • 512MB DDR4 RAM
  • no eMMC NAND Flash
  • 128MBit SPI-NOR
  • -25°...+85°C



OSM Standard

 OSM Standard

The idea of all Open Standard Modules (OSM) is to create a new, future proof and versatile standard for small-size, low-cost embedded computer modules, combining the following key characteristics:

  • different architectures available on the same footprint, scalability in function and performance
  • four different mechanical sizes and pin counts, downwards compatible
  • pre-defined soft- and hardware interfaces
  • specification and design guide publicly available
  • design support for baseboard integration, driver development and mass production by ARIES Embedded

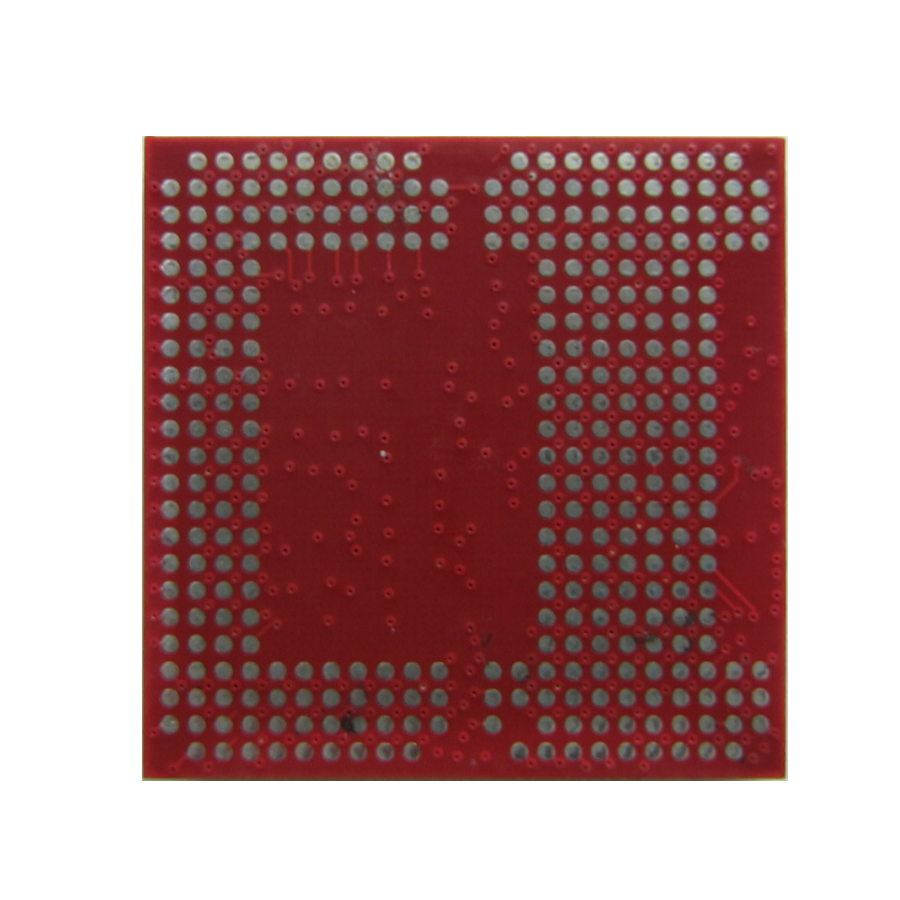

  • directly assembly to the baseboard without connectors using LGA (Land Grid Array) technology
  • completely machine processible during soldering, assembly and testing

The Open Standard Module specification allows developing, producing and distributing embedded modules for the most popular MCU32, ARM and RSICV architectures. For a growing number of IoT applications this standard helps to combine the advantages of modular embedded computing with increasing requirements regarding costs, space and interfaces.
