MCXLEVK – Intel PSG Cyclone10LP Evaluation Kit

Easy Start and Integration of the Cyclone 10 LP SoM

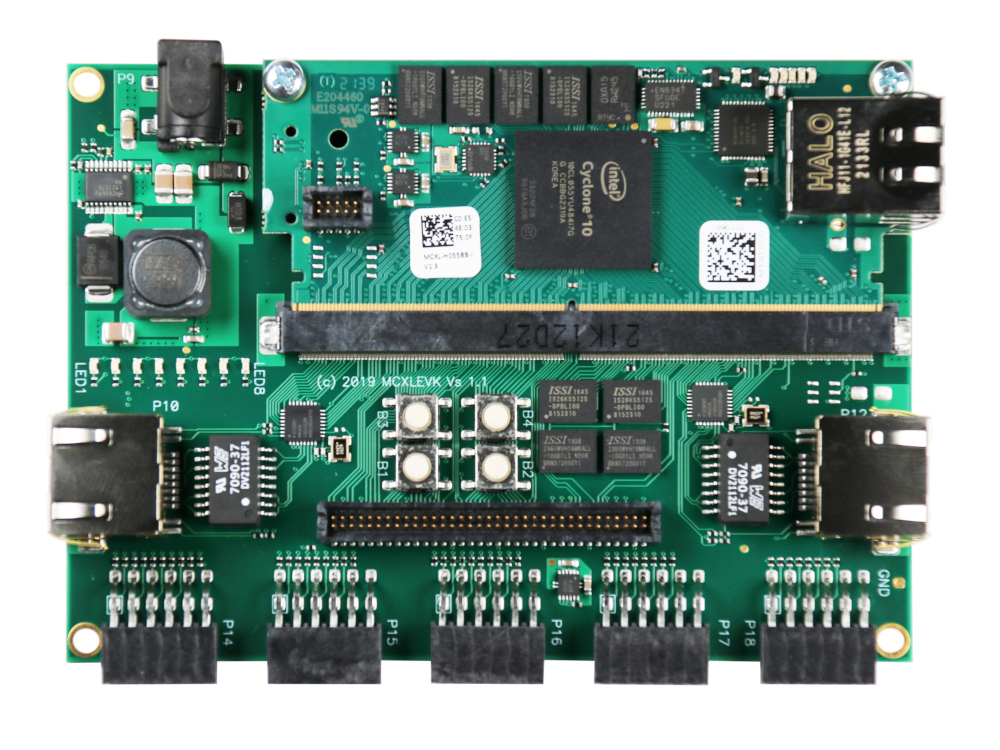

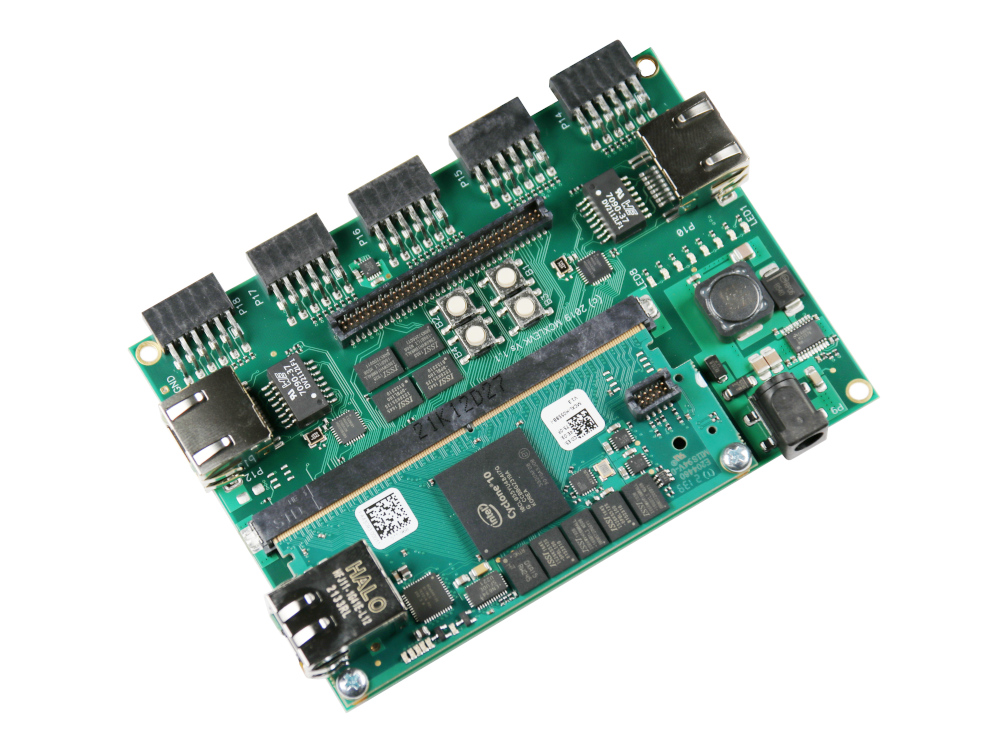

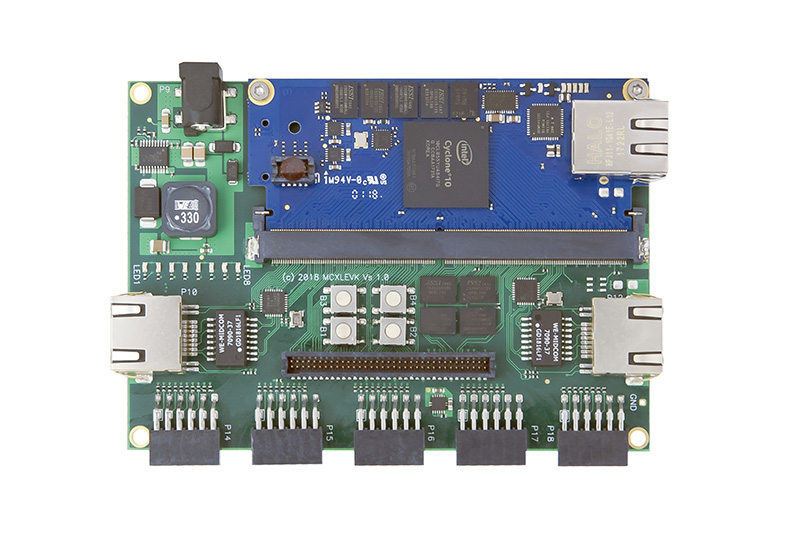

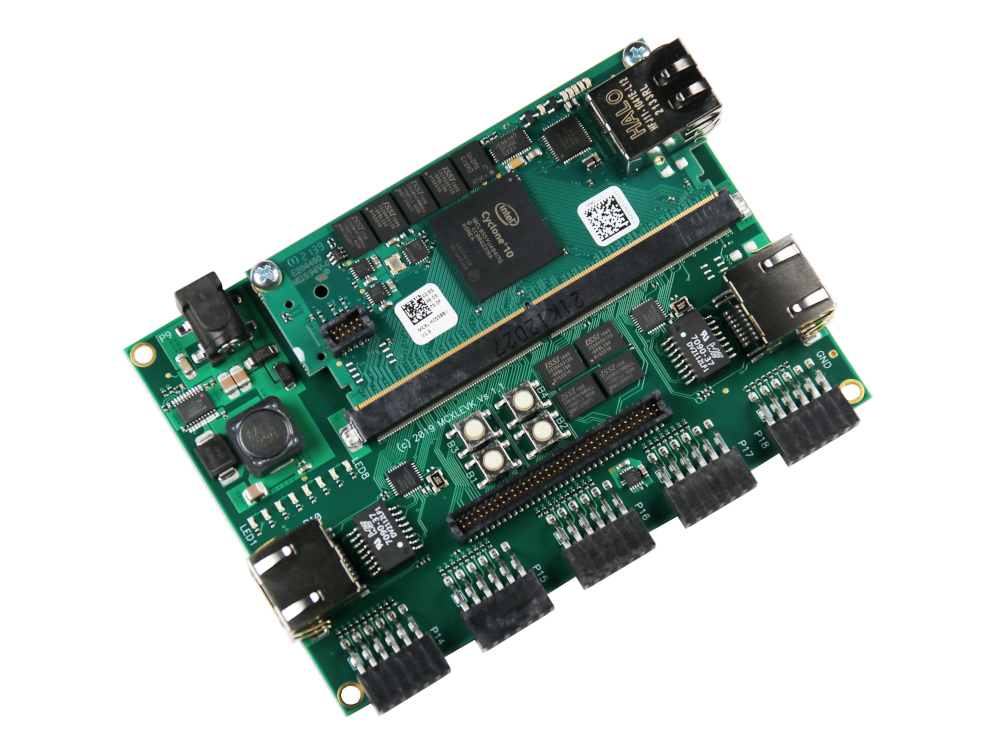

The MCXLEVK can be used for first evaluations of the MCXL Cyclone 10 Module. It provides the power supply and JTAG Connection, as well as all IO Signals. The IO Signals are connected to 2.54mm pinheader. Additionally Eight User LEDs and Buttons are available, which can be connected to IO Signals using Jumper. The base board can be supplied from 7 to 36V and provides the 3.3V power supply for the module.
I/O voltages are connected to 3.3V via a zero-ohm resistor. For different I/O voltages the resistor can be resoldered and the voltage can be supplied via the pin header.

  • Power Supply
  • JTAG Header
  • Service Header for I2C programming
  • SPI EEPROM
  • 8 User LEDs
  • 8 User Buttons
  • Size : 110 x 123 mm
