MSRZG2ULEVK - Evaluation Kit for Open Standard Modules
Versatile and Edgy Evaluation Kit for OSM SoMs
![](/sites/default/files/styles/produktbild/public/OSMEVK-ljknqdqwd_2.jpg?itok=AQrdhWLF)
The MSRZG2ULEVK is the flexible platform for a quick and smooth startup with your new MSRZG2UL System on Module, based on the OSM standard. Due to its functionality it supports developers for a quick startup, helps developing software and can also be used as a platform for rapid prototyping.
The baseboard supports SoMs which are compatible to the OSM specification as well as SoMs compliant to proprietary implementations. The evaluation system consists out of the
- SoM, hosting all memory and logic interfaces
- the adapter board, converting interfaces and/or voltage levels to the right value / direction so that the SoM functionality can be used on the baseboard
- the baseboard which hosts all components to provide the physical interface implementation and connectors
Features
- MSRZG2UL System on Module
- Ethernet on RJ45 connector
- display on FPC connector or pin header
- USB Host on USB A connector
- USB OTG interface on USB microAB connector
- console interface on USB microAB connector
- UART on pin header
- CAN on pin header
- SPI on pin header
- I2C on pin header
- GPIO on pin header
- JTAG on pin header
Block Diagram
![](/sites/default/files/OSMEVK_BD.png)
Pictures

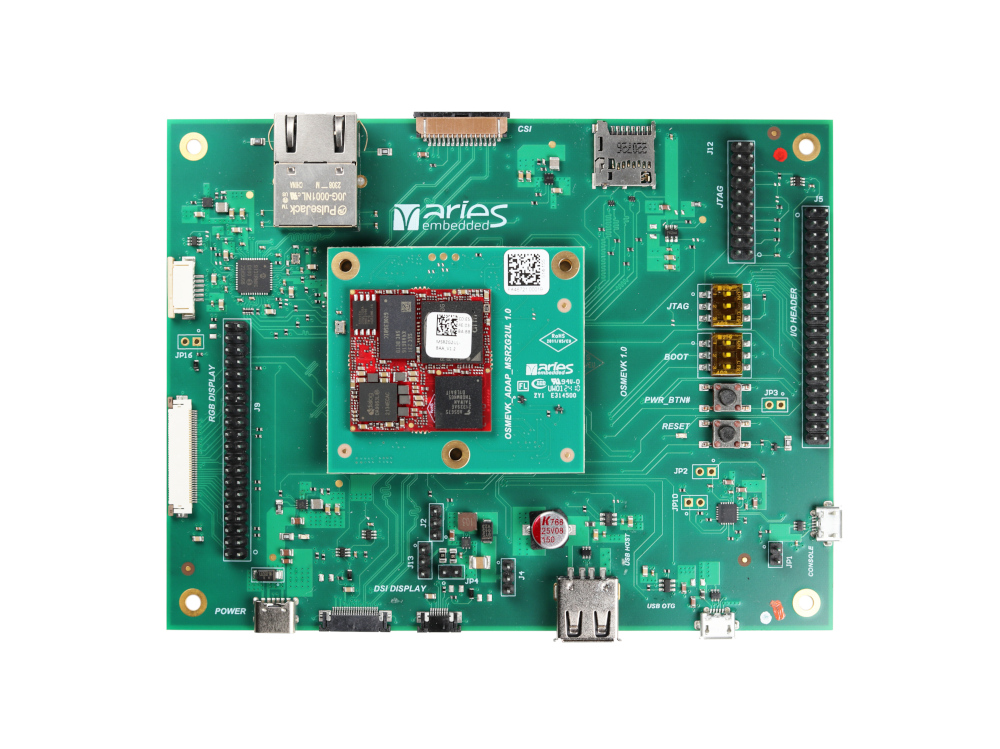

![](/sites/default/files/OSMEVK-3_0.jpg)

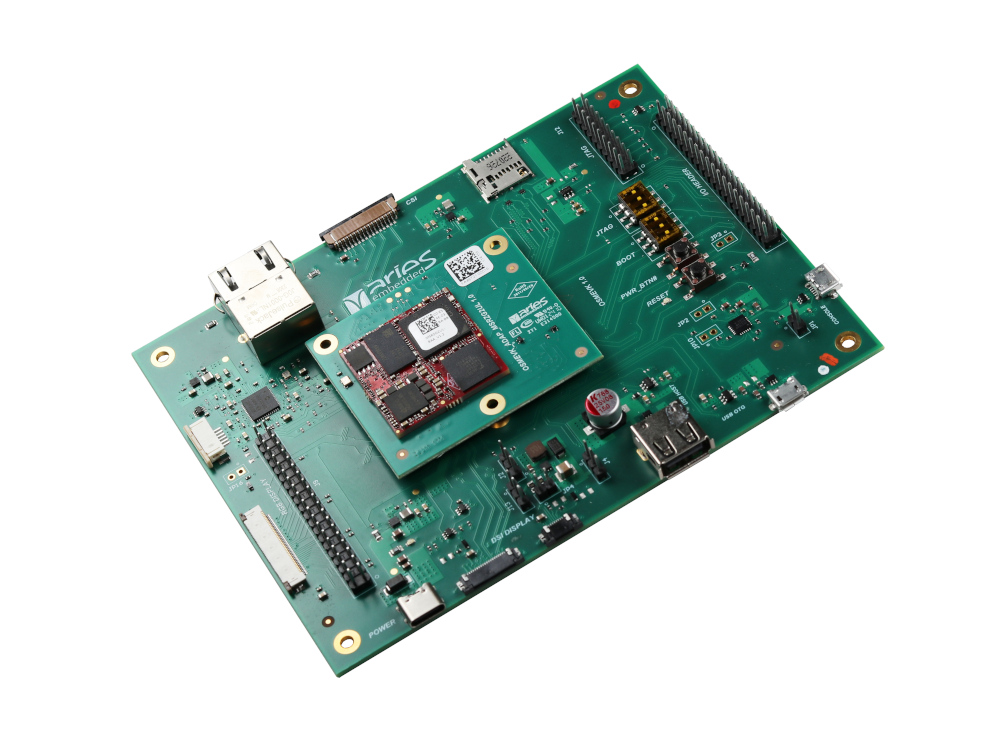

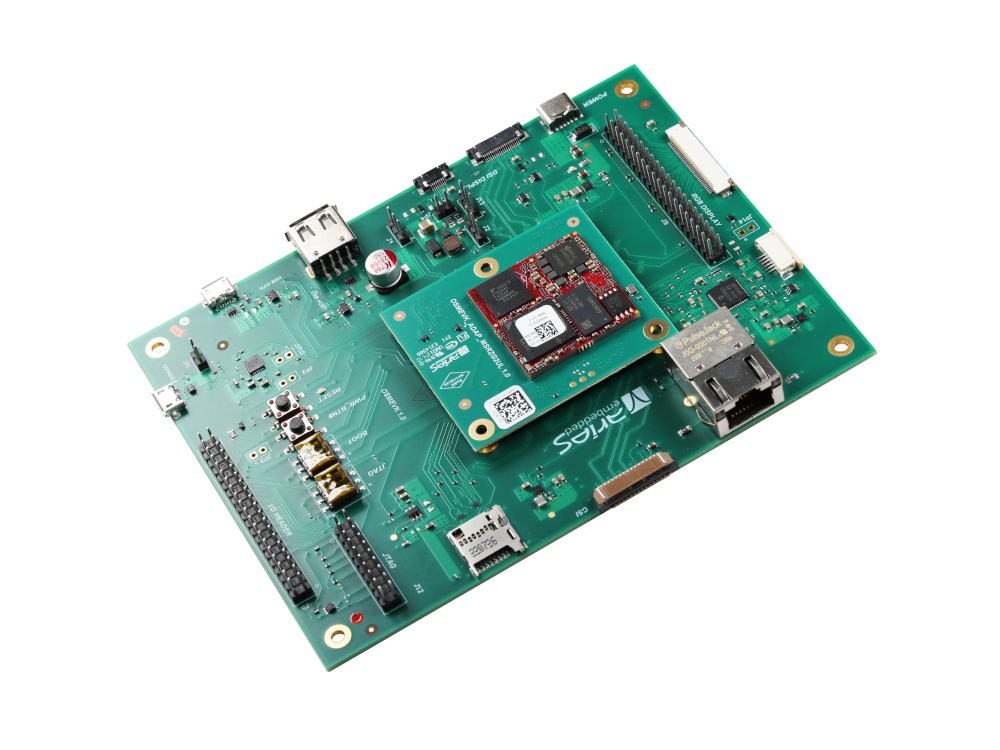

![](/sites/default/files/OSMEVK-6_1.jpg)
Order Codes
- MSRZG2ULEVK-A0A
featuring- MSRZG2UL-A0A SoM
- Renesas RZ/G2UL R9A07G043U11GBG
- 512MB DDR4 RAM
- no eMMC NAND Flash
- 128MBit SPI-NOR
- -25°...+85°C
- MSRZG2UL-A0A SoM
- MSRZG2ULEVK-BAA
featuring- MSRZG2UL-BAA SoM
- Renesas RZ/G2UL R9A07G043U11GBG
- 1GB DDR4 RAM
- 4GB eMMC
- 128MBit SPI-NOR
- -25°...+85°C
- MSRZG2UL-BAA SoM
Versatile and Edgy Evaluation Kit for OSM SoMs
