M53EVK – NXP i.MX53 Evaluation Kit
Easy Start and Integration of the i.MX53 SoM
The M53EVK is available as a flexible evaluation platform which enables user to setup a running system in a very short time frame. Due to the Plug'n Play concept and the completeness of the EVK it can be used either for evaluating the M53 SOM or setting up a prototype.
The M53EVK is shipped as a complete kit with an optional 17,78cm (7'') TFT display with touch screen support and a wall plug.
Features
- Ethernet 10/100MBit on RJ45
- Debug UART on DSUB9
- UART on DSUB9
- Dual CAN on DSUB9
- Line In, Mic In, headphone out / speaker out via SGTL5000
- USB Host
- USB OTG
- SD card slot
- SPI Flash
- I²C EEPROM
- DIP Switch for Boot Mode and Power options
- JTAG
- size 165mm x 135mm

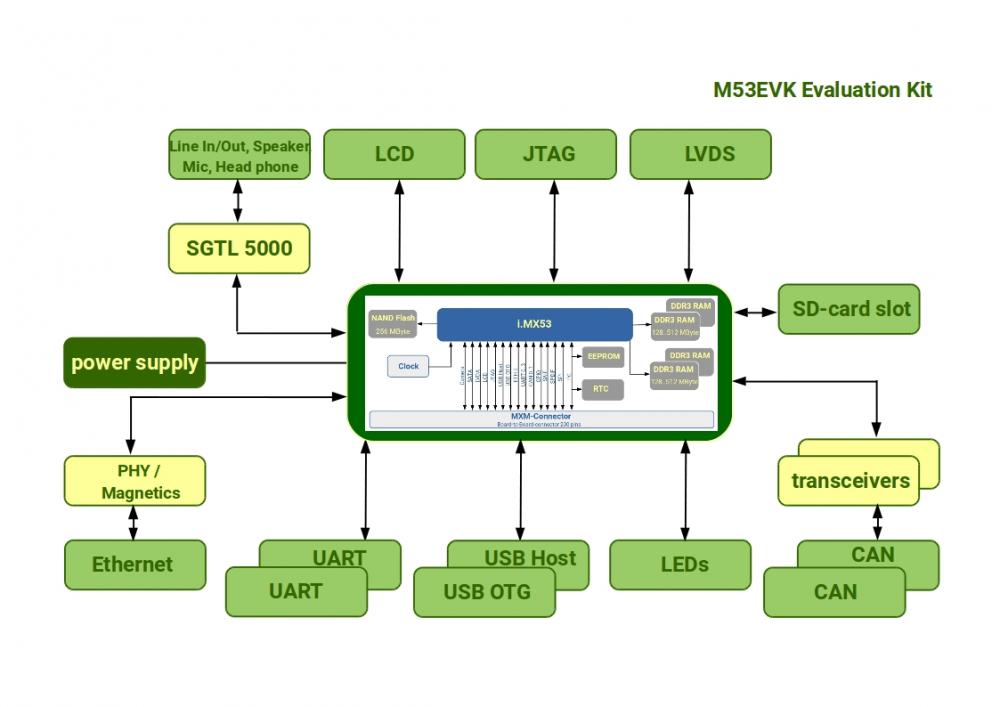

Block Diagram

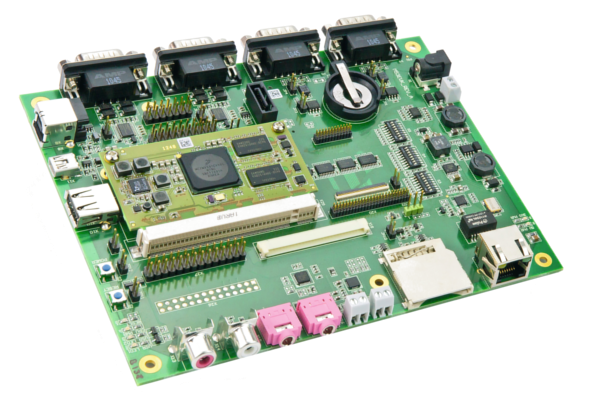

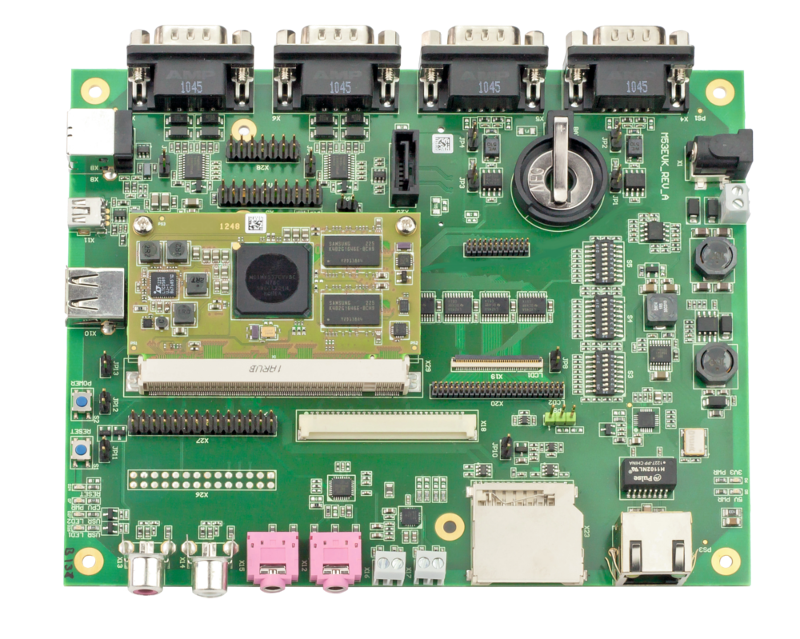

Pictures
Order Codes
M53EVK-7BD1CI0
- M53-7BD1CIA
- i.MX537, 800MHz
- 1GB DDR3 SDRAM
- 256MB NAND Flash
- RTC
- 128 kB EEPROM
- 230 pin MXM connector
- temperature range -40°C..+85°C
- Power Supply
- Download Cable
The M53EVK is shipped as a complete kit including a 17,78cm (7'') TFT display with touch screen support and a wall plug.
M53EVK Kit Content
- M53 supporting
- i.MX537, 800 MHz speed
- 1GB DDR3 RAM
- 256MB NAND Flash
- M53EVK baseboard supporting
- Ethernet 10/100MBit on RJ45
- Debug UART on DSUB9
- UART on DSUB9
- Dual CAN on DSUB9
- Line In, Mic In, headphone out / speaker out via SGTL5000
- USB Host
- USB OTG
- SD card slot
- SPI Flash
- I²C EEPROM
- DIP Switch for Boot Mode and Power options
- JTAG
- size 165mm x 135mm
- Display Kit (optional)
- 17,7cm (7'') LCD
- Touch Screen
- Power supply
